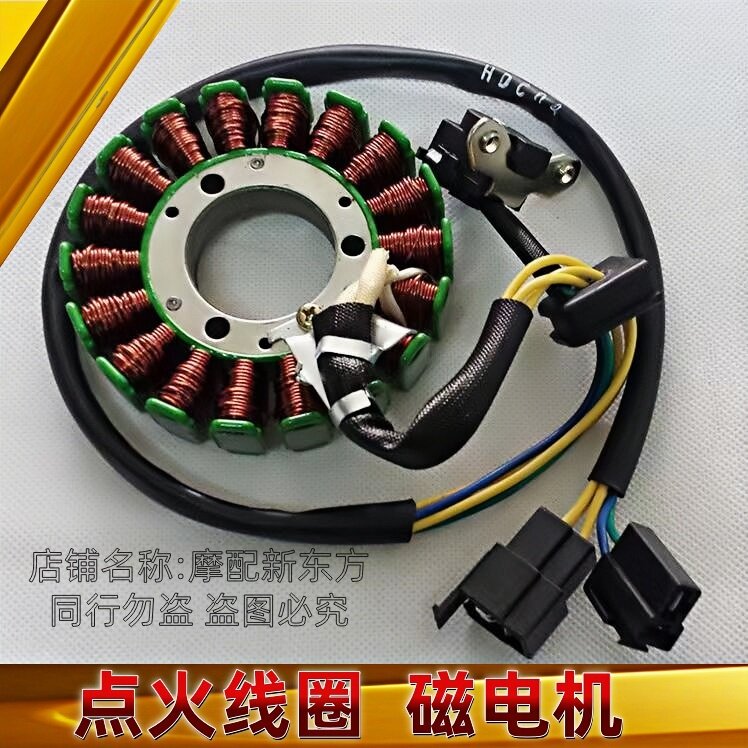

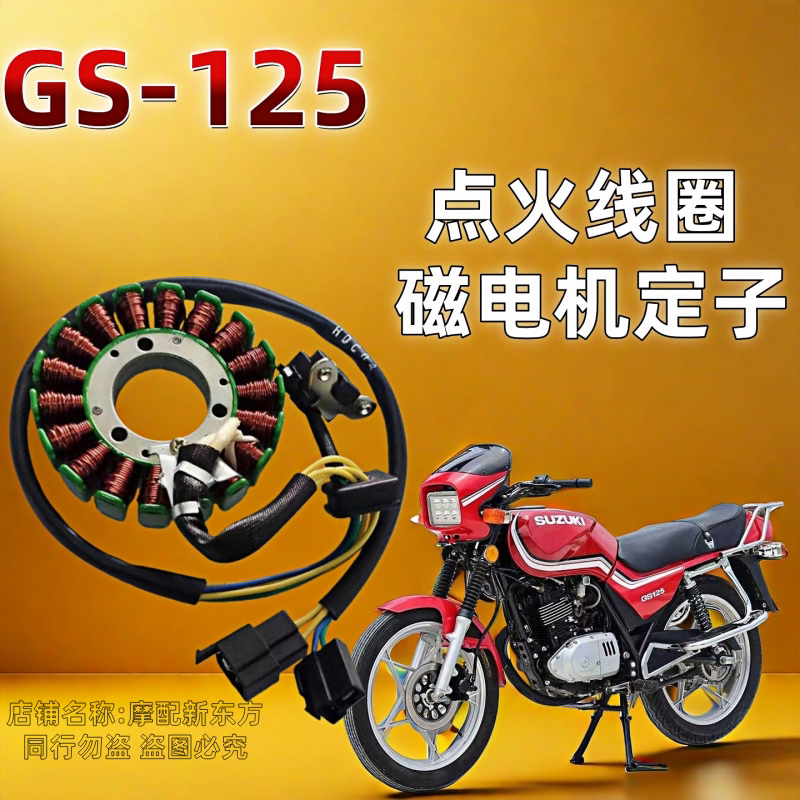

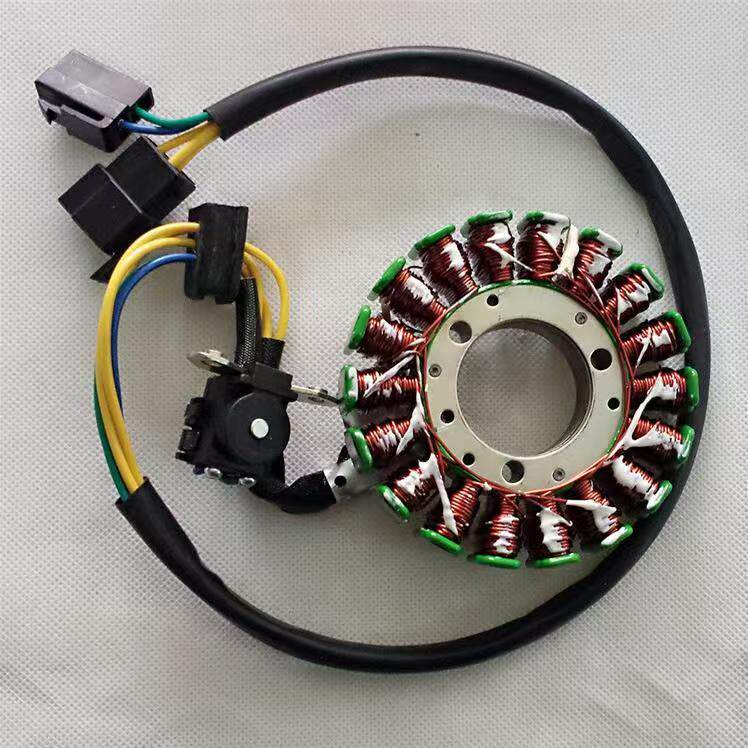

High-Performance Magneto Stator Charging Coil for Suzuki GN125, GS125, and HJ125K Series
Restore the heart of your motorcycle’s electrical system with this premium-grade replacement magneto stator. Specifically engineered for the 125cc Suzuki engine platform, this charging coil is the ideal solution for riders experiencing dimming lights, battery drainage, or ignition failures. Whether you are restoring a classic Suzuki Prince or maintaining a daily-driven HJ125K, this component provides the reliable power delivery required to keep your engine running smoothly and your electronics fully powered.
Key Benefits
- Optimized Power Generation: Featuring high-density copper windings, this stator maximizes electrical conductivity and efficiency. It ensures your battery receives a consistent charge while providing ample power for your headlamps and auxiliary electronics.
- Superior Heat Resistance: The coils are treated with high-temperature insulation to prevent short-circuiting and thermal degradation, even during long rides in demanding conditions.
- Seamless Compatibility: Precision-manufactured to match the original equipment specifications for the Suzuki GN125 and GS125 series, ensuring a perfect fit within the engine casing without the need for custom brackets.
- Enhanced Ignition Reliability: By providing a stable current to the ignition system, this stator helps produce a stronger, more consistent spark, which improves cold-start performance and throttle response.
- Durable Housing & Core: Constructed with a high-grade magnetic steel core, the assembly is designed to withstand the vibrations and mechanical stress of high-RPM operation.
Key Specs
- Compatible Models: Suzuki GN125, GS125, HJ125K (Zuanbao), Suzuki Prince (Taizi), and Suzuki King (Suzuki Wang).
- Engine Displacement: Optimized for 125cc single-cylinder engines.
- Component Type: Magneto Stator / Ignition Charging Coil.
- Materials: High-conductivity copper, premium silicon steel laminations, and oil-resistant wiring harness.
How to Use
To ensure a successful installation, you will need basic mechanical tools, including a socket set and a flywheel puller (if the rotor needs removal).
- Disconnect the negative battery terminal to prevent electrical surges.
- Drain the engine oil if necessary and remove the left-side engine crankcase cover.
- Unbolt the old stator from the inside of the cover and carefully pull the wiring grommet out of the casing.
- Install the new stator using the original mounting points, ensuring the wires are routed away from moving parts.
- Apply a small amount of oil-resistant sealant to the wire grommet to prevent leaks.
- Connect the new wiring harness to the motorcycle’s regulator-rectifier and ignition loom.
- Reassemble the cover, refill the oil, and test the charging voltage with a multimeter while the engine is idling.
Care & Safety
- Professional Installation: Because this involves the internal engine environment and electrical systems, professional installation by a certified mechanic is recommended.
- System Check: Before installing, inspect your regulator-rectifier and battery; a faulty regulator can burn out a brand-new stator.
- Cleanliness: Ensure the magneto area is free of metal shavings or debris before sealing the engine cover.
- Storage: Keep the unit in its protective packaging until installation to avoid damage to the delicate copper windings.
Notes
This essential electrical component is categorized as a "65-125 点火线圈 磁电机寇子" to signify its role in both the ignition and charging cycles of your motorcycle.
