Schneider LC1E Series High-Performance AC Contactors - Industrial Grade Motor Control
The Schneider LC1E series represents a robust solution for heavy-duty electrical switching and motor control. Engineered for industrial environments, these AC contactors provide the reliability needed to manage high-capacity power distribution and automated machinery. Whether you are upgrading a control panel or building a new electrical system, the LC1E range offers the durability and precision required for modern industrial standards.
Key Benefits
- Premium Full Copper Coils: Each unit is equipped with high-quality copper coils, ensuring superior electrical conductivity and a significantly longer service life compared to standard alloy alternatives.
- Flame-Retardant Safety Housing: The exterior is constructed from high-grade flame-retardant materials, providing an essential layer of protection against thermal overloads and potential fire hazards in high-heat environments.
- Consistent and Stable Performance: Designed for high-frequency switching, these contactors maintain steady electrical connections and reliable mechanical operation even under rigorous industrial duty cycles.
- Versatile Model Range: With options ranging from the LC1E200 to the LC1E630, this series accommodates a wide spectrum of amperage requirements, making it suitable for various motor sizes and power loads.
- Rugged Construction: Built to withstand the mechanical stresses of industrial automation, the internal components are optimized for minimal wear and maximum uptime.
Key Specs
- Series: LC1E
- Device Type: AC Contactor

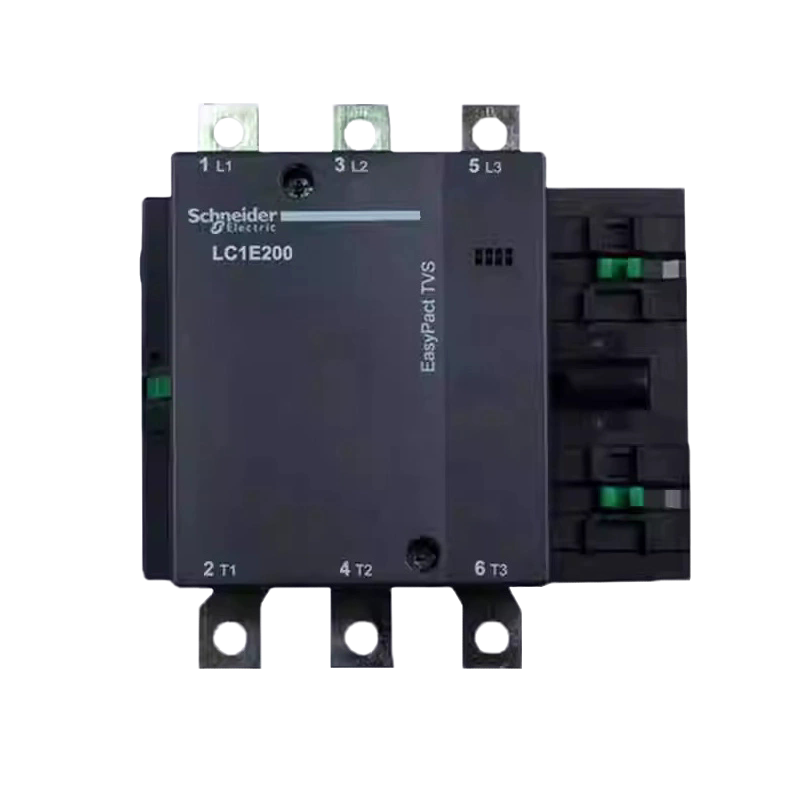

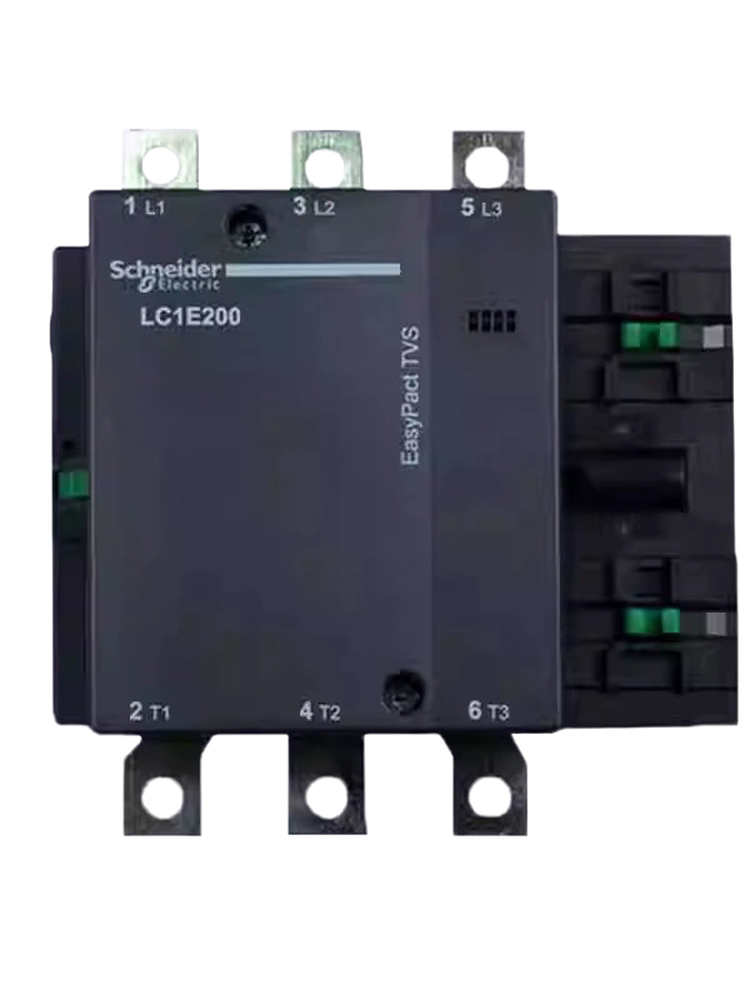

- Available Models: LC1E200, LC1E250, LC1E300, LC1E400, LC1E500, LC1E630
- Internal Componentry: 100% full copper induction coils
- Housing Material: High-density flame-retardant polymer
- Terminal Configuration: Three-pole (3P) design with heavy-duty screw terminals for secure high-current wiring
How to Use
- Safety First: Ensure that the main power supply is completely disconnected and locked out before attempting installation or maintenance.
- Selection: Verify that the specific model (e.g., LC1E200 or LC1E500) matches the voltage and current requirements of your motor or electrical load.
- Mounting: Secure the contactor onto a standard DIN rail or a dedicated mounting plate inside a protected electrical cabinet.
- Wiring the Load: Connect the primary power supply lines to the input terminals (1L1, 3L2, 5L3) and connect the motor or load to the corresponding output terminals (2T1, 4T2, 6T3).
- Control Circuit: Wire the control signal to the coil terminals (typically labeled A1 and A2) to enable remote switching via a PLC or manual push button.
- Inspection: Use a torque wrench to ensure all terminal screws are tightened to the manufacturer's specification to prevent arcing or overheating.
Care & Safety
- Voltage Verification: Always confirm that the control coil voltage (e.g., 220V, 380V) matches your control system before energizing the unit.
- Environmental Protection: Store and install in a dry, dust-free environment. For outdoor or high-moisture use, the contactor must be housed in an appropriately rated NEMA or IP enclosure.
- Maintenance: Periodically check the contact points for signs of excessive wear or carbon buildup, and ensure terminals remain tight in high-vibration applications.
Notes
"Full copper coil" ensures high efficiency and stable performance for demanding industrial applications.
