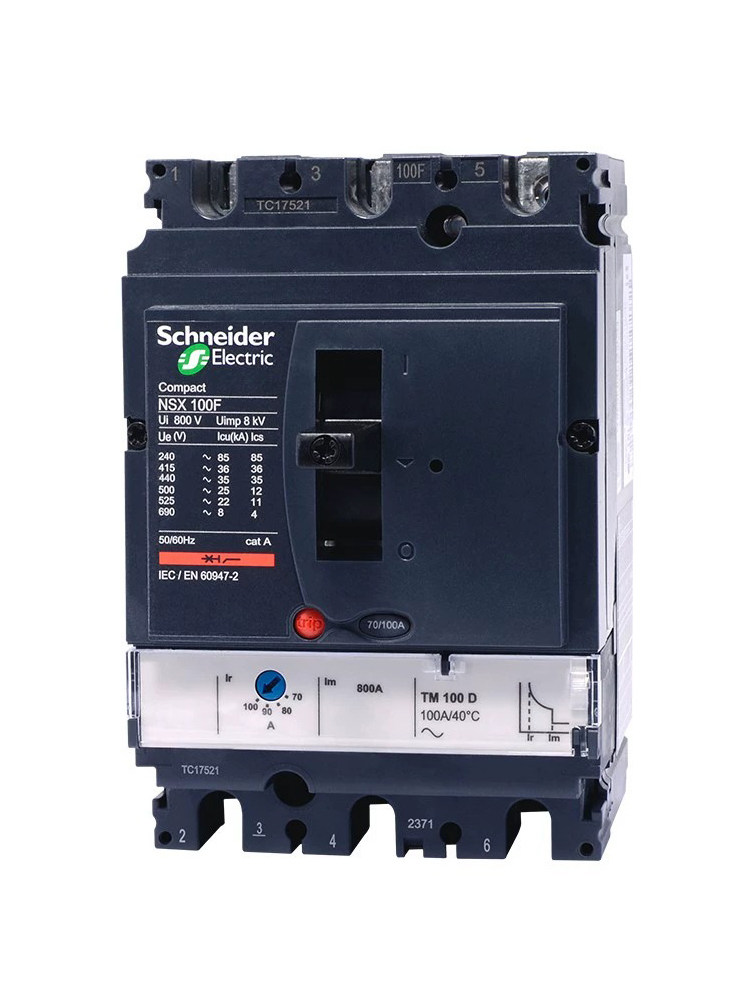

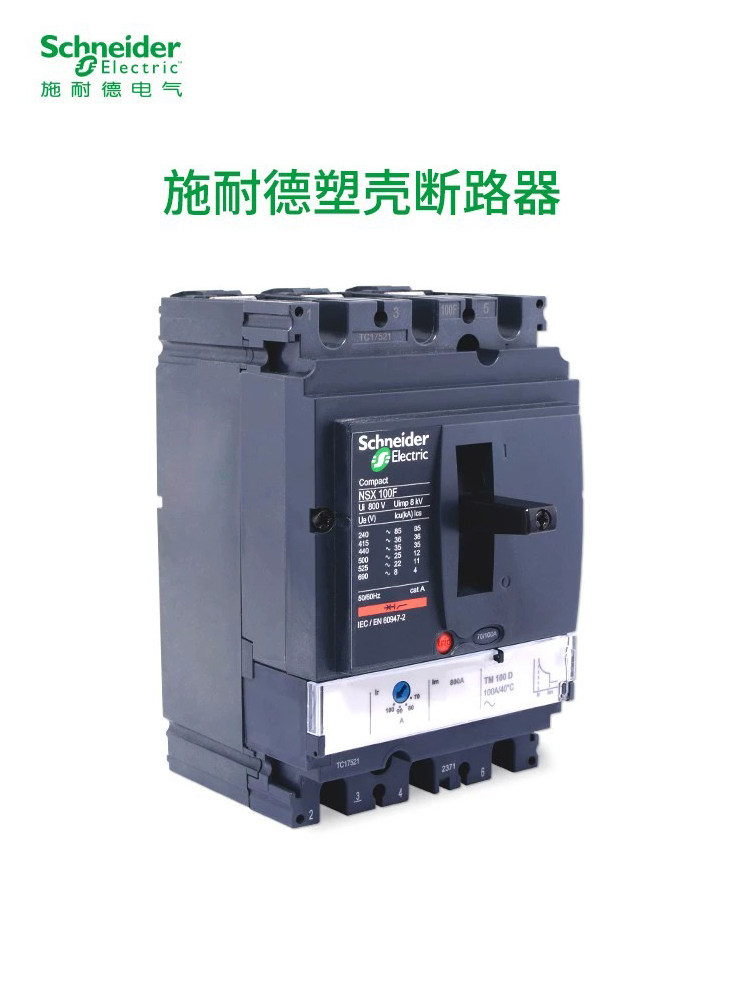

Schneider Electric NSX Series Marine Molded Case Circuit Breaker - 3P/4P MCCB (100A–630A)
The Schneider Electric NSX series is a premier solution for high-performance electrical protection, specifically optimized for the demanding conditions of marine and industrial environments. This Molded Case Circuit Breaker (MCCB) lineup offers unparalleled reliability in safeguarding your electrical infrastructure against overloads and short circuits. Designed with versatility in mind, the NSX series ensures seamless power distribution and operational continuity for complex maritime systems and heavy-duty commercial power grids.
Key Benefits
- Marine-Grade Durability: Specifically engineered to withstand the unique stresses of shipboard use, these breakers are built for longevity and consistent performance in high-vibration and harsh environments.
- Comprehensive Current Range: With support for a wide spectrum of amperages—from 16A up to 630A—this series provides a scalable solution for various power requirements and load sizes.
- Precision Circuit Protection: Utilizing advanced NSX technology, these units offer fast-acting response times to electrical faults, preventing expensive damage to downstream equipment and sensitive electronics.
- Versatile Pole Configurations: Available in both 3-pole and 4-pole variants, allowing for flexible integration into standard three-phase systems or setups requiring neutral protection.

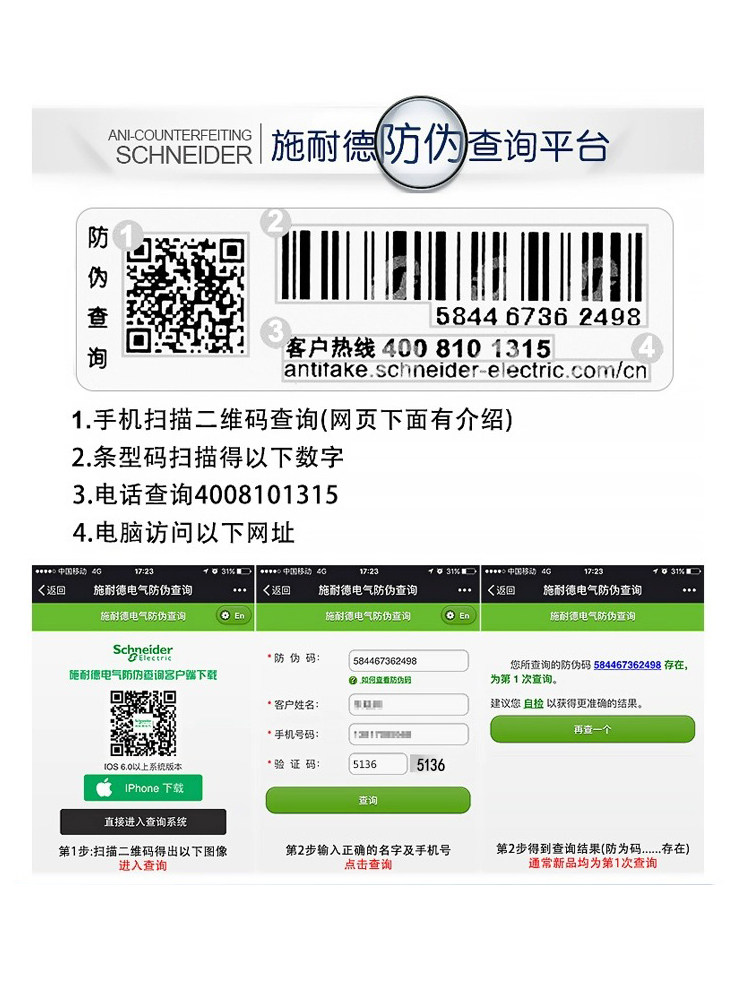

- Verified Authenticity: Each unit features multi-channel anti-counterfeiting measures, including a dedicated QR code, a unique serial ID, and a verification hotline to ensure you are installing genuine Schneider Electric hardware.
Key Specs
- Series: Compact NSX

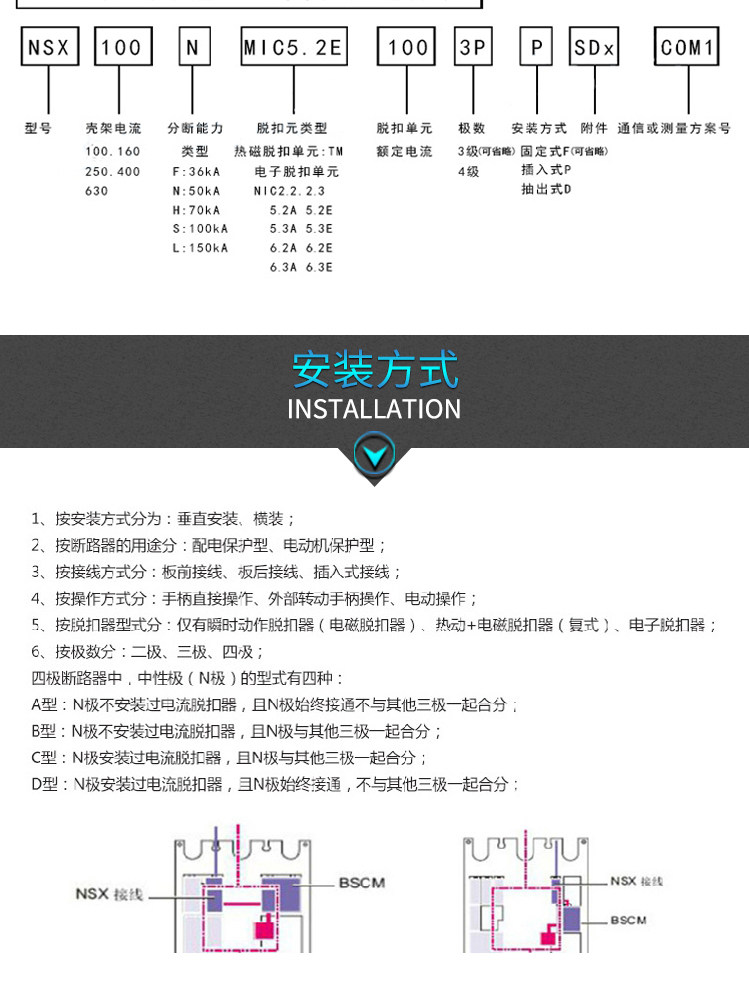

- Supported Models: NSX100N, NSX160N, NSX250N, NSX400N, NSX630N
- Rated Voltage: 240V to 380V

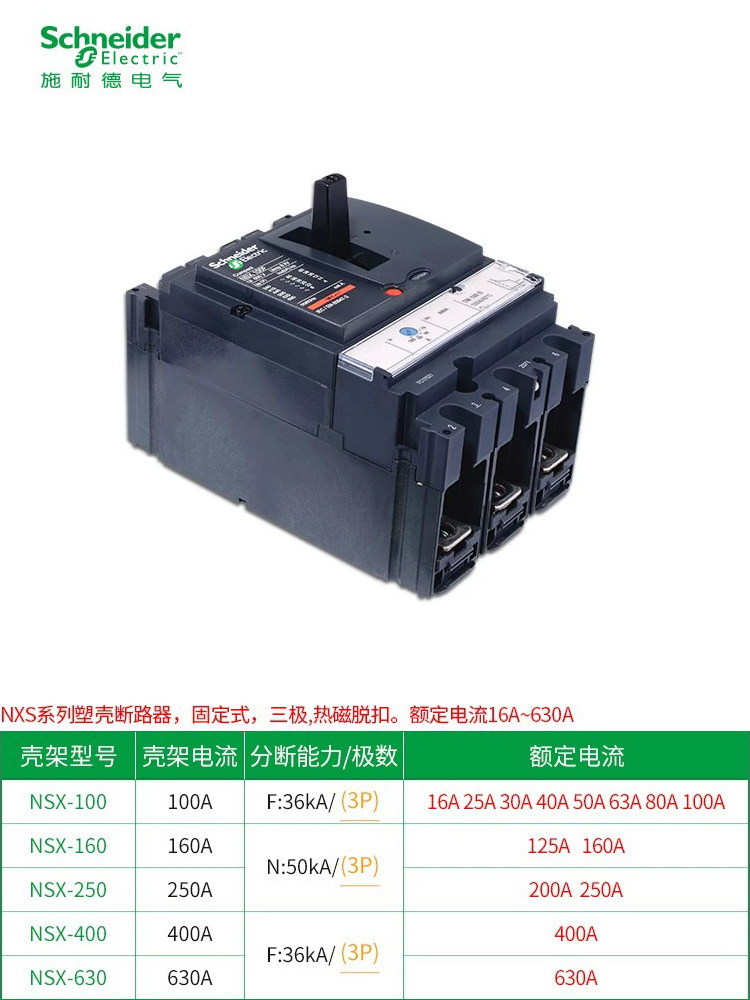

- Current Rating: 16A – 630A (Model dependent)
- Pole Count: 3P (3-Pole) or 4P (4-Pole)
- Application: Marine, industrial, and commercial electrical distribution
How to Use
Installation must be carried out by a qualified electrical professional. Before beginning, ensure the main power supply is fully disconnected, locked out, and tagged out. Mount the MCCB securely within your distribution panel or marine control box using the appropriate mounting hardware. Connect the primary and load-side wiring to the designated terminals, ensuring all connections are tightened to the manufacturer's recommended torque settings to prevent arcing or overheating. Once installed, perform a manual toggle test to ensure the mechanical operation is smooth. Before final commissioning, scan the QR code located on the device or contact the official hotline to confirm the unit's authenticity.
Care & Safety
Store the unit in a dry, cool environment prior to installation. In maritime settings, ensure the breaker is housed in an appropriately rated enclosure to protect against salt spray and excessive moisture. Periodically inspect the terminals for any signs of discoloration or corrosion, which may indicate loose connections or environmental wear. Do not exceed the rated 380V capacity or the maximum amperage of the specific model. If the breaker trips, always identify and resolve the underlying electrical fault before attempting to reset the toggle.
Notes
"原装正品一站式购齐"
