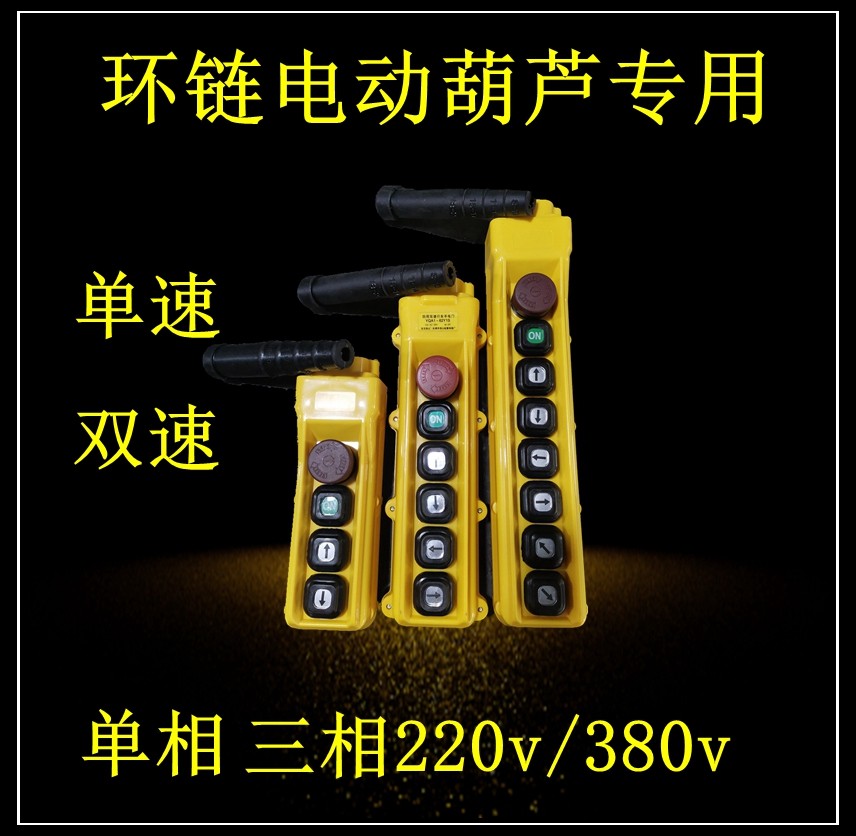

Industrial Electric Chain Hoist Pendant Control Station - Universal Crane Lift Switch (220V/380V)
Take full command of your heavy-duty lifting operations with this professional-grade pendant controller. Specifically engineered for industrial electric chain hoists and overhead cranes, this control station provides the precision and durability required for demanding warehouse, construction, and manufacturing environments. Whether you are performing vertical lifts or complex multi-directional maneuvering, this ergonomic handle ensures responsive performance and enhanced operator safety.
Key Benefits
- Versatile Power Compatibility: Engineered for maximum flexibility, this controller is compatible with both single-phase 220V and three-phase 380V power systems, allowing it to integrate seamlessly into various industrial electrical infrastructures.

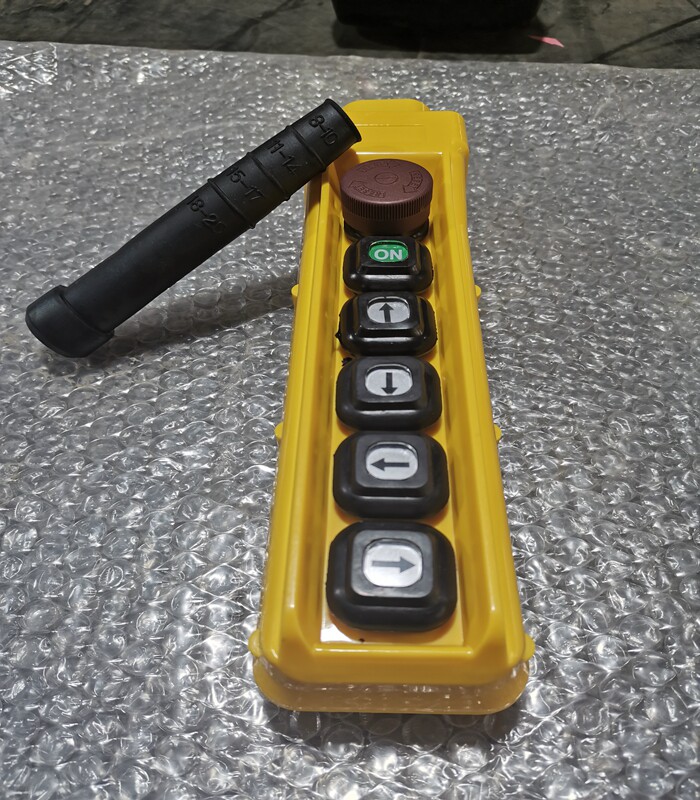

- Multi-Directional Maneuverability: Available in multiple configurations, including 2-button and 6-switch layouts. This allows for comprehensive control over Up, Down, Left, and Right movements to position heavy loads with surgical precision.

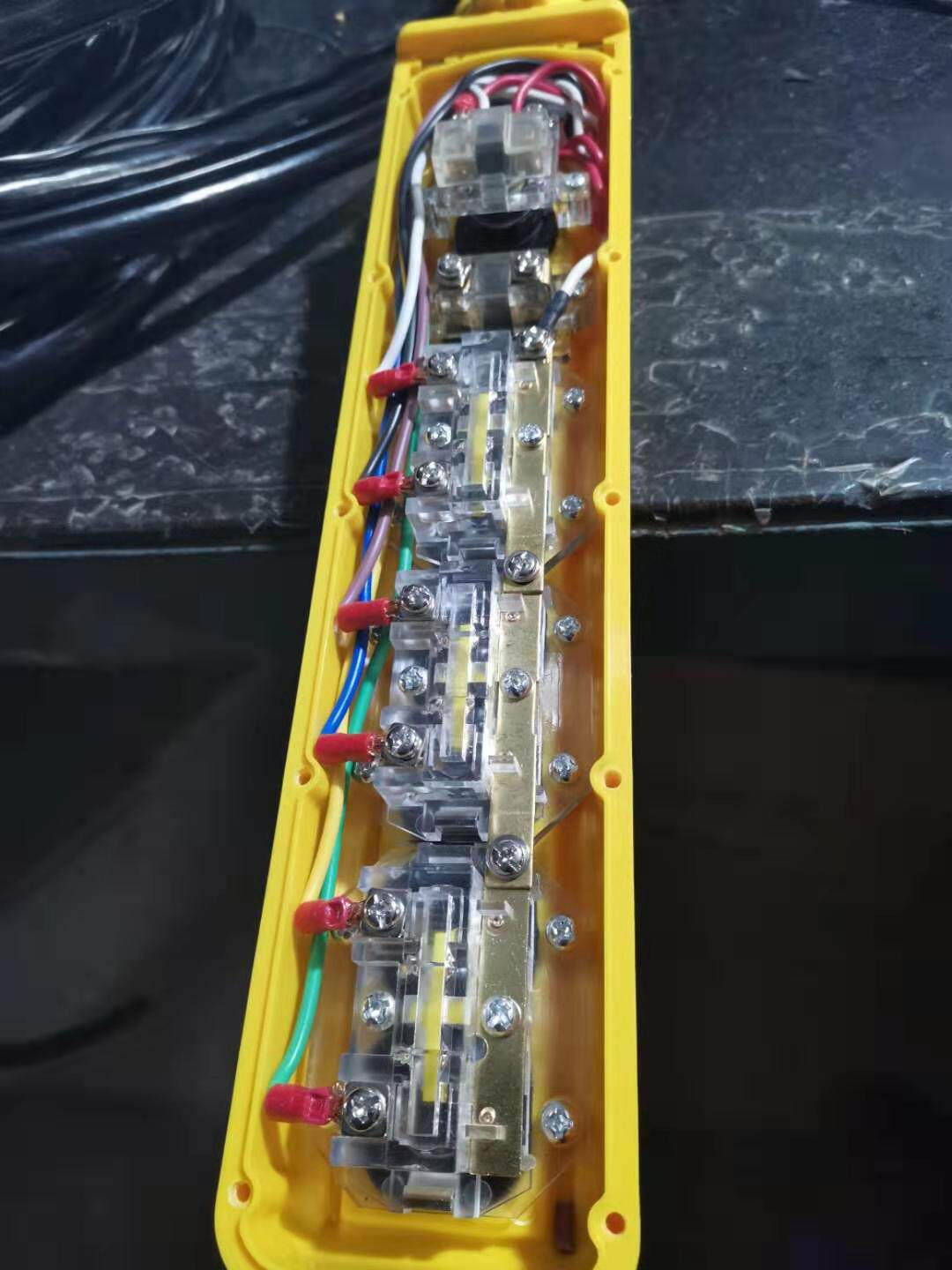

- Enhanced Operator Safety: The internal circuitry is designed for a 36V control voltage. This low-voltage safety feature protects the operator from high-voltage exposure at the pendant, significantly reducing the risk of electrical accidents during operation.
- Single & Double Speed Support: Designed to accommodate different motor types, the unit supports both single-speed and double-speed hoist configurations, providing the right amount of torque and velocity for every task.
- Rugged Industrial Housing: The pendant is encased in a high-impact, dust-resistant shell designed to withstand the vibration, drops, and environmental wear typical of busy jobsites and factory floors.
Key Specs
- Application: Specialized for electric chain hoists and lifting machinery.
- Operating Voltage: Dual support for 220V and 380V systems.
- Control Voltage: 36V safety circuit.
- Phase Compatibility: Works with Single-Phase and Three-Phase wiring.

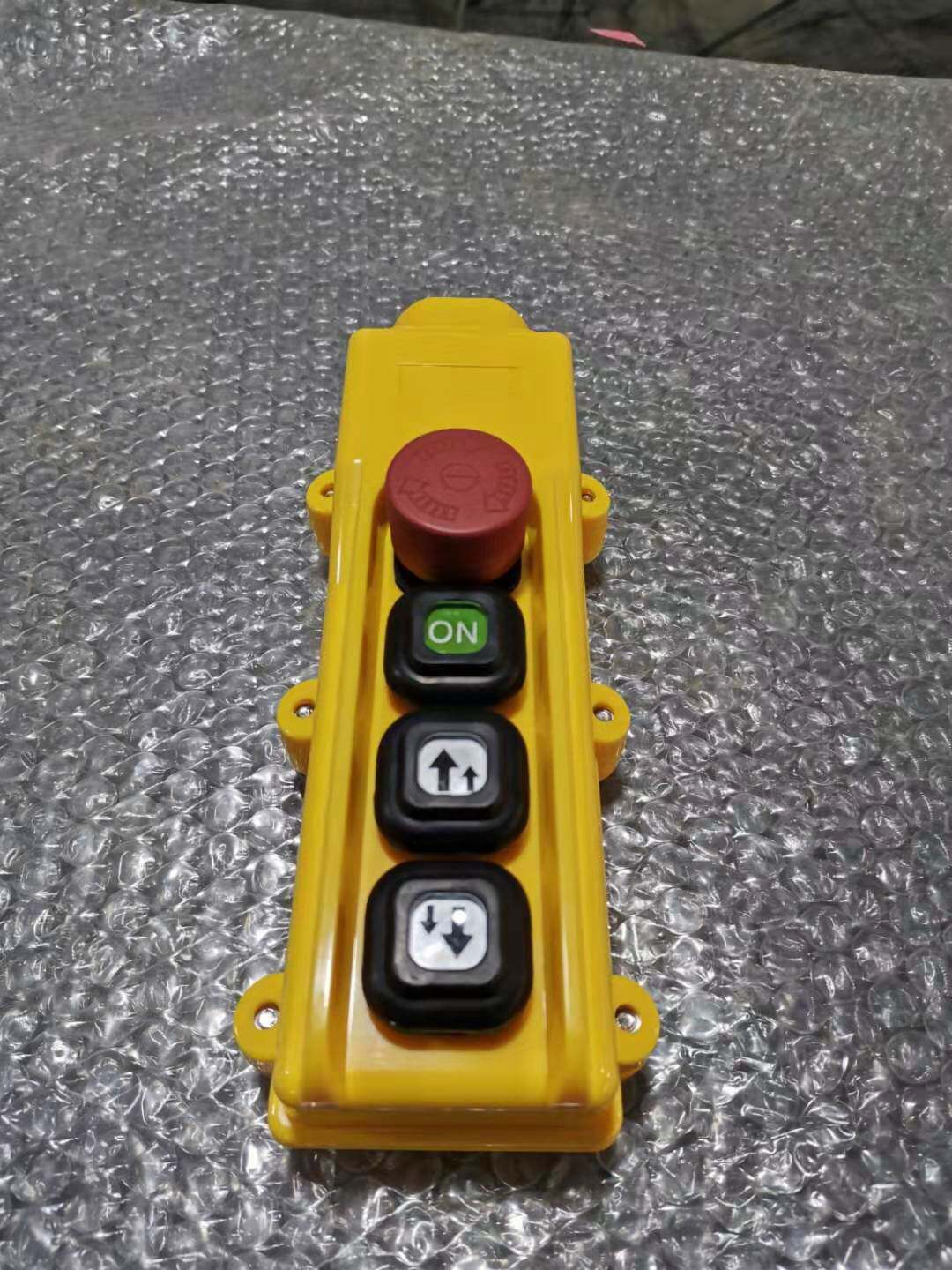

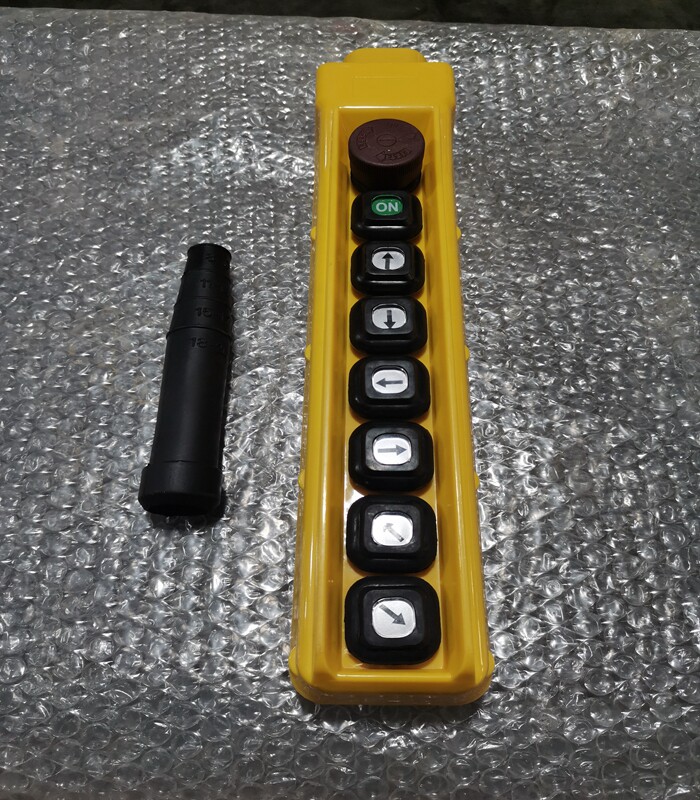

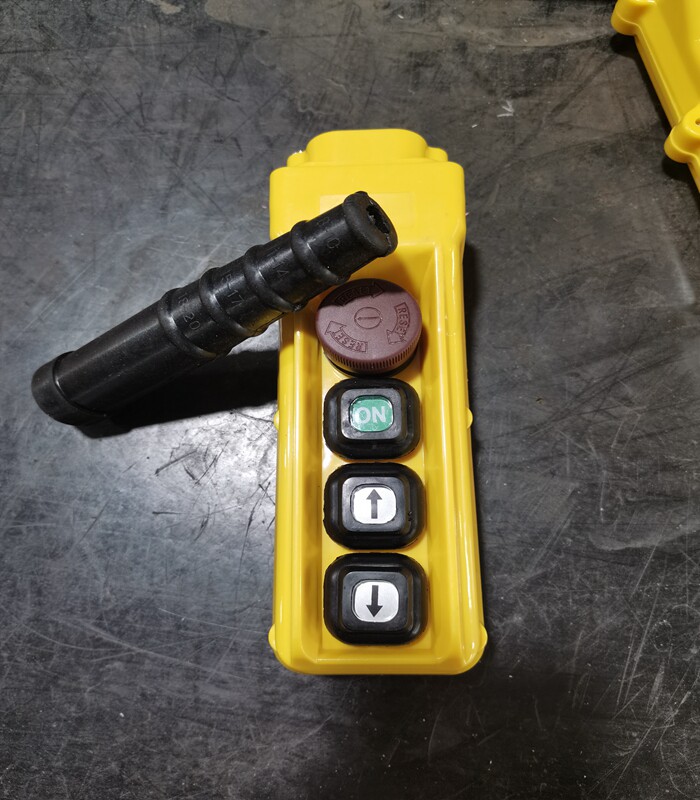

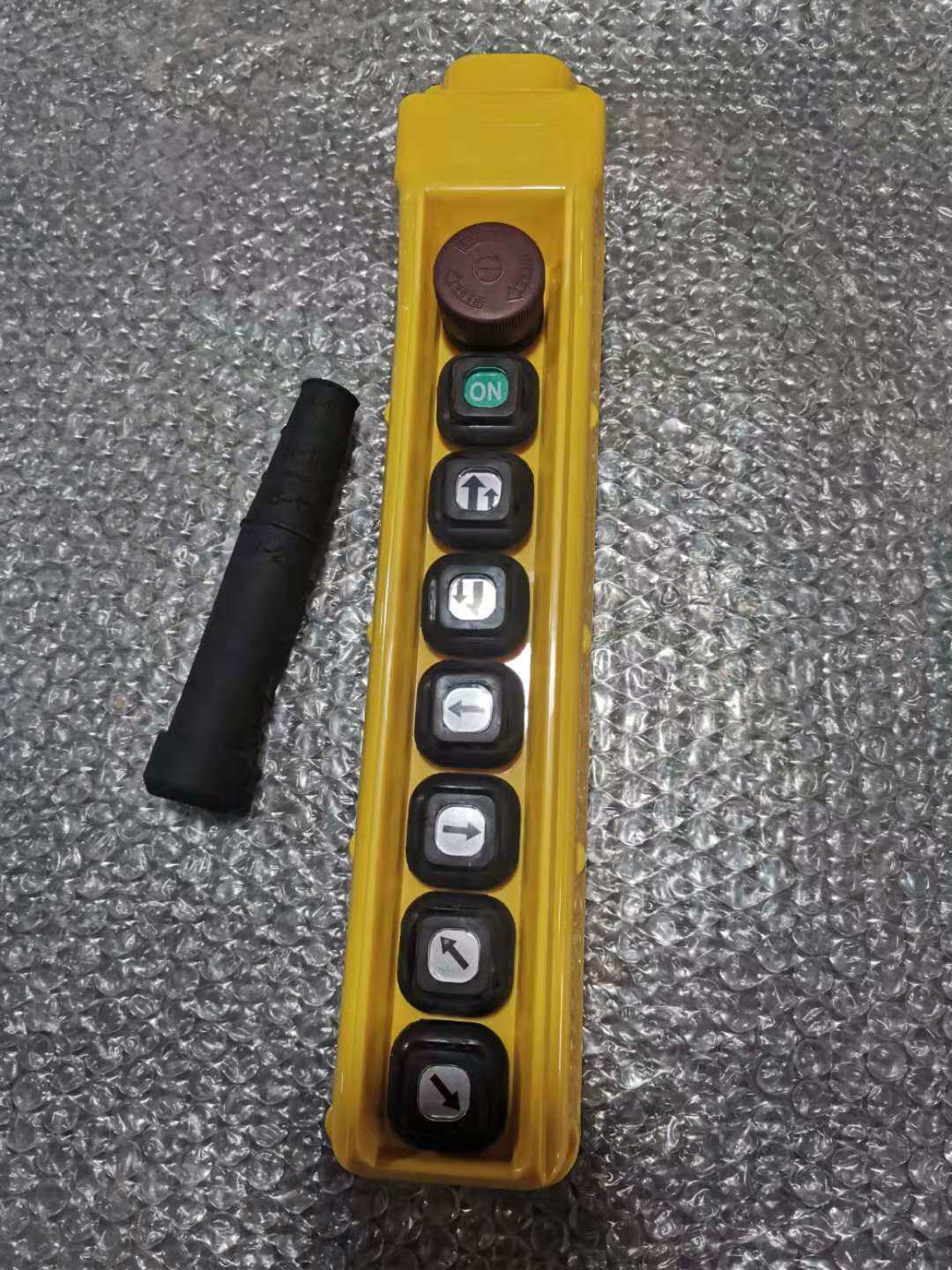

- Button Configurations: Options for 2-button (Up/Down) or 6-switch (Multi-axis) control.
- Speed Modes: Compatible with Single-speed and Double-speed hoist motors.
How to Use
- Safety First: Ensure the main power supply to the hoist is completely disconnected before attempting installation.

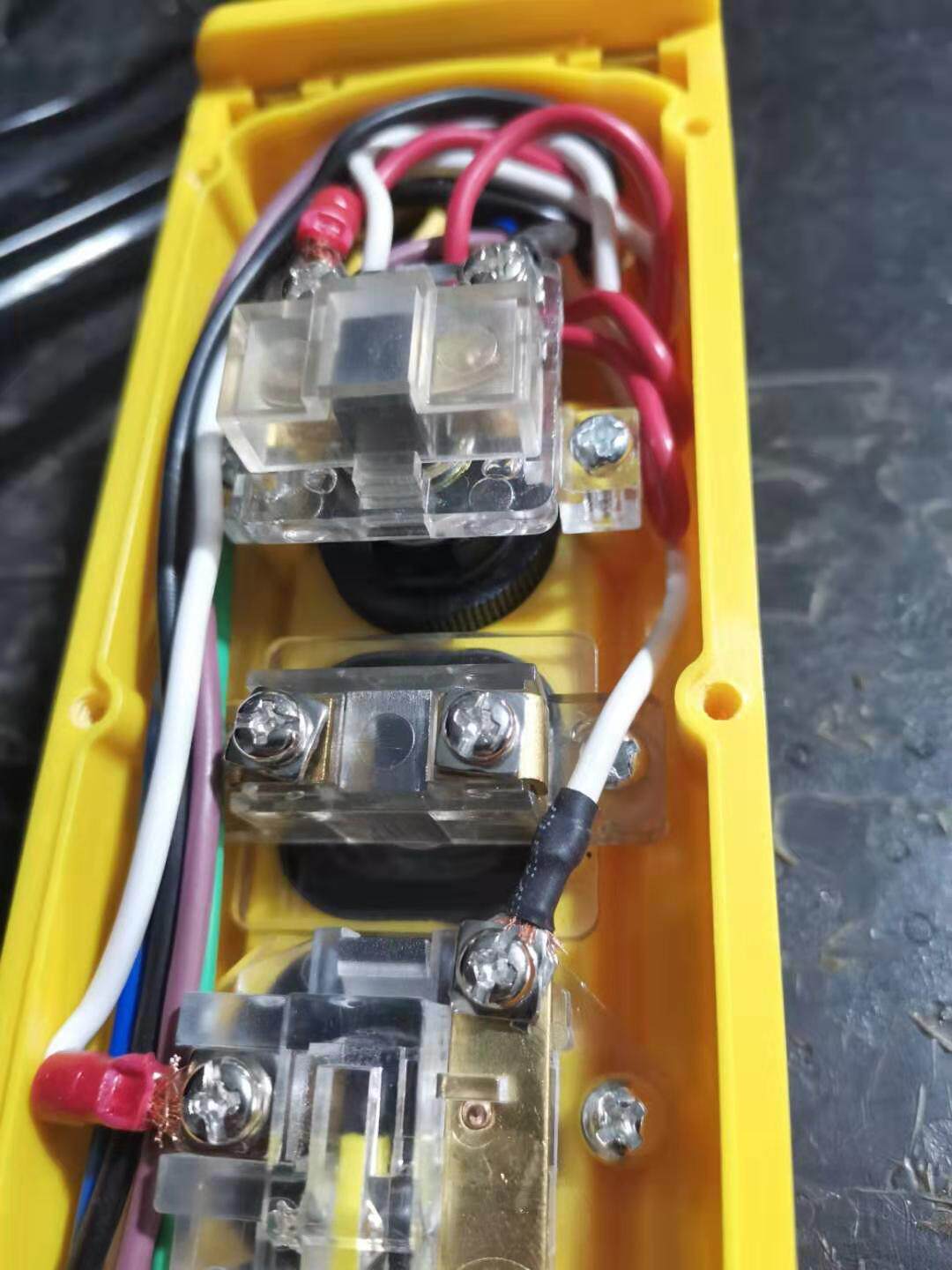

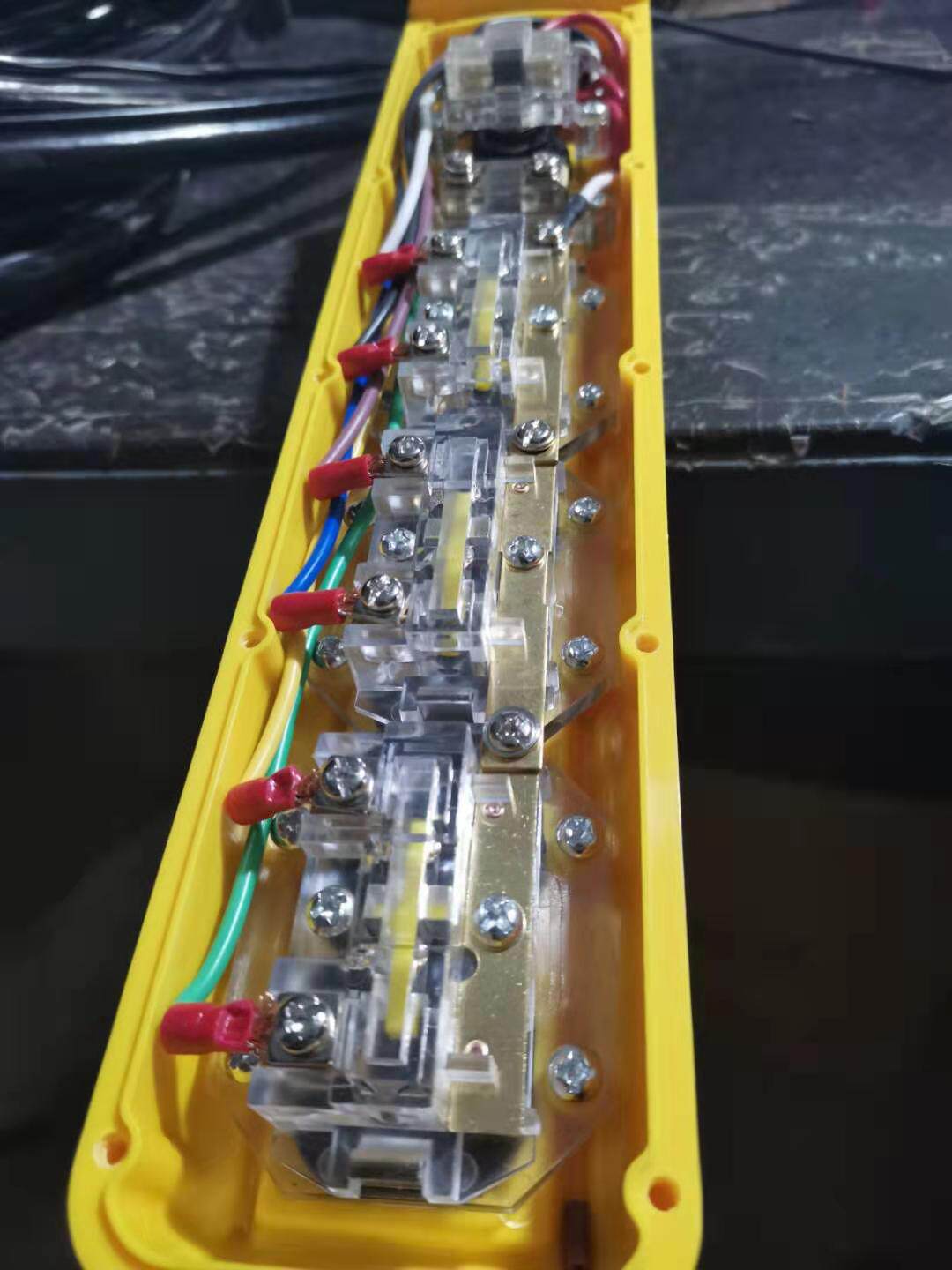

- Wiring: Match the pendant’s wiring leads to the corresponding terminals on your hoist’s contactor or control box. Refer to your specific motor's wiring diagram for single-phase or three-phase setups.
- Connection Check: Secure all connections and ensure the protective cable sleeve is properly seated to prevent strain on the internal wires.
- Initial Testing: Turn on the power and perform a "dry run" without a load. Press each button (Up, Down, and directional switches) to verify that the hoist moves in the intended direction.
- Operation: Use firm, steady pressure on the buttons. For double-speed models, engage the secondary switch depth to increase hoist velocity.
Care & Safety
Inspect the pendant cable and housing daily for cracks, fraying, or signs of wear. Avoid exposing the internal components to direct water or heavy moisture. This device should only be installed by a qualified technician familiar with industrial electrical systems. Ensure the emergency stop (if equipped) is tested and functional before every shift.
Notes
This unit is "Special for electric chain hoists" and is built to provide reliable tactile feedback for heavy-duty lifting.
