Schneider Electric Compact NSX Molded Case Circuit Breakers (MCCB) | 100A to 630A Industrial Protection
Ensure the safety and reliability of your electrical distribution systems with the Schneider Electric Compact NSX series. These high-performance Molded Case Circuit Breakers (MCCB) are designed to protect electrical installations against overloads and short circuits. Engineered for industrial and commercial environments, the NSX range offers a flexible solution for power management, providing consistent performance across a wide range of current ratings and breaking capacities.
Key Benefits
- Versatile Current Range: With support for ratings from 100A up to 630A (including 250A and 400A variants), these units are suitable for diverse applications, from small-scale distribution boards to heavy-duty industrial machinery.
- Multiple Breaking Capacities: Available in F, N, and H performance levels, allowing you to select the precise level of short-circuit protection required for your specific infrastructure needs.
- Flexible Pole Configurations: Choose between 3P (three-pole) and 4P (four-pole) models to accommodate different wiring systems and ensure comprehensive circuit isolation.
- Proven Industrial Reliability: As a global leader in energy management, Schneider Electric ensures these breakers meet rigorous safety standards, offering long-term durability and minimizing downtime.
- Compact Design: The space-saving footprint allows for easy integration into standard electrical cabinets and switchgear without compromising on protection capabilities.

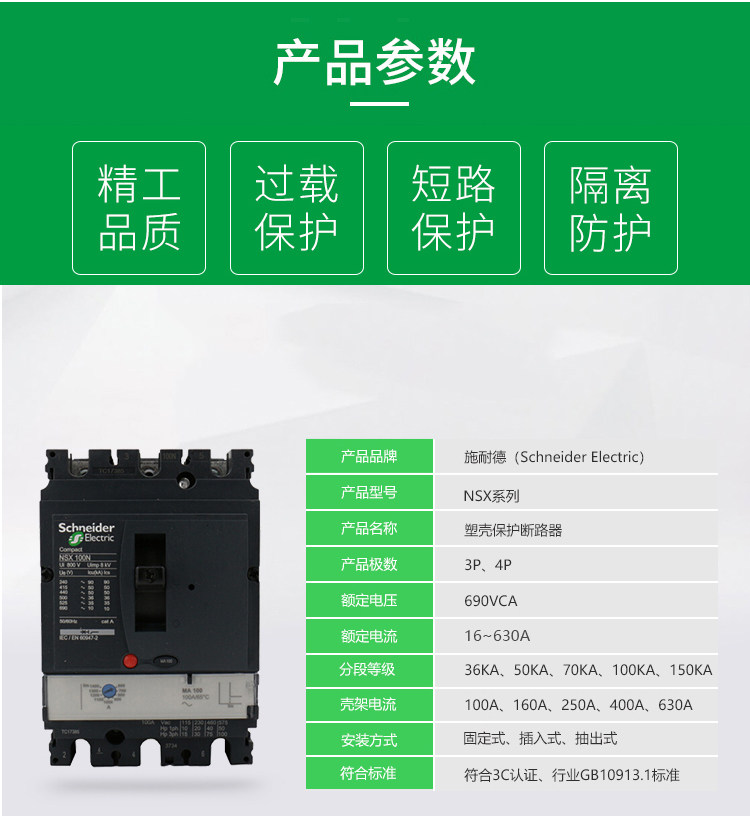

Key Specs

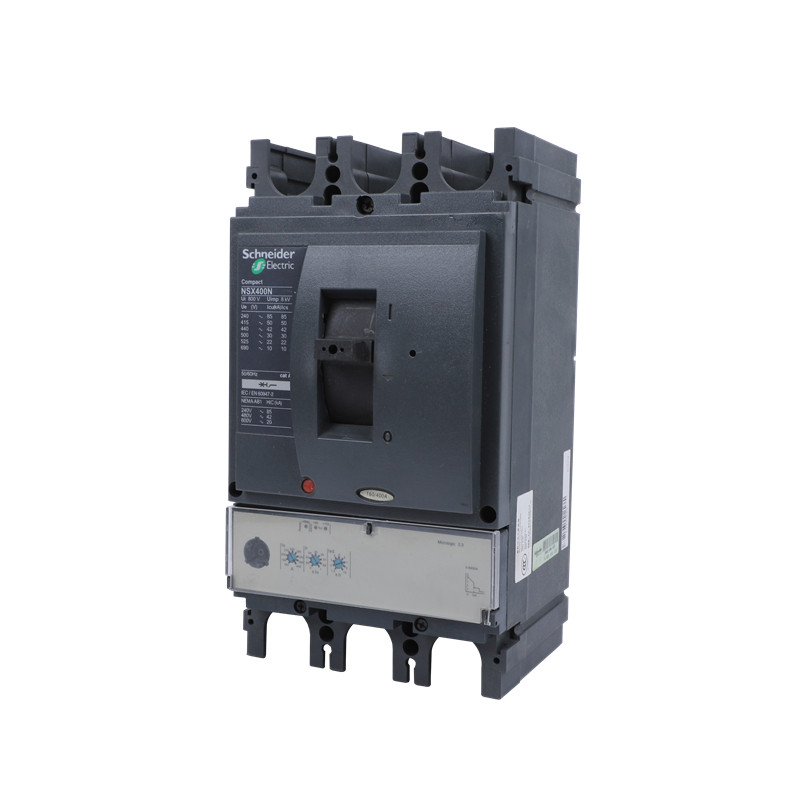

- Series: Schneider Electric Compact NSX
- Available Models: NSX100, NSX160, NSX250, NSX400, NSX630
- Current Ratings: 100A, 160A, 250A, 400A, 630A
- Pole Options: 3-Pole (3P) and 4-Pole (4P)
- Breaking Capacity Levels: F (Standard), N (High), H (Extra High)

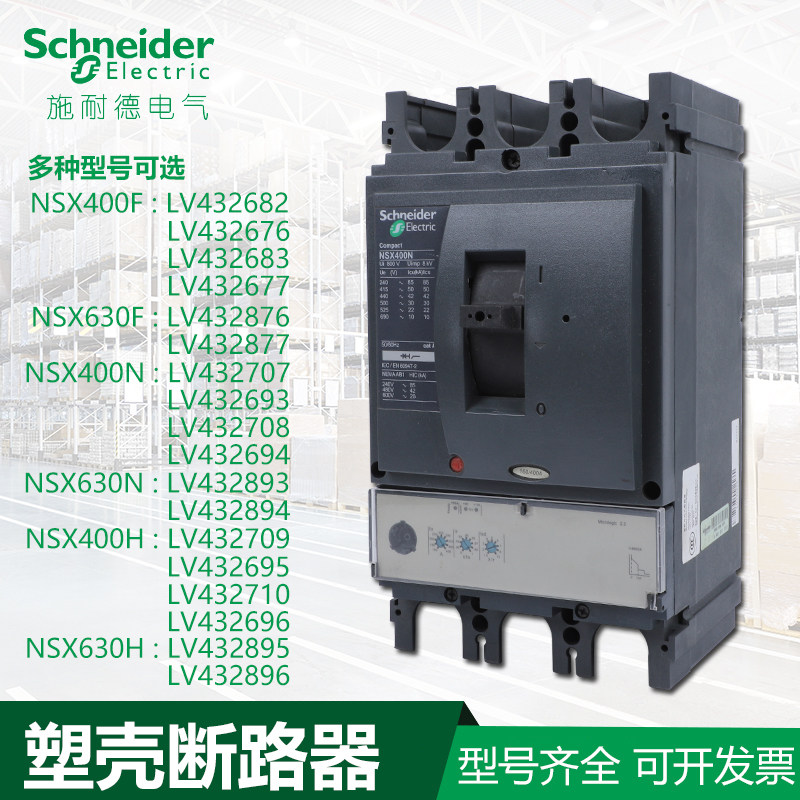

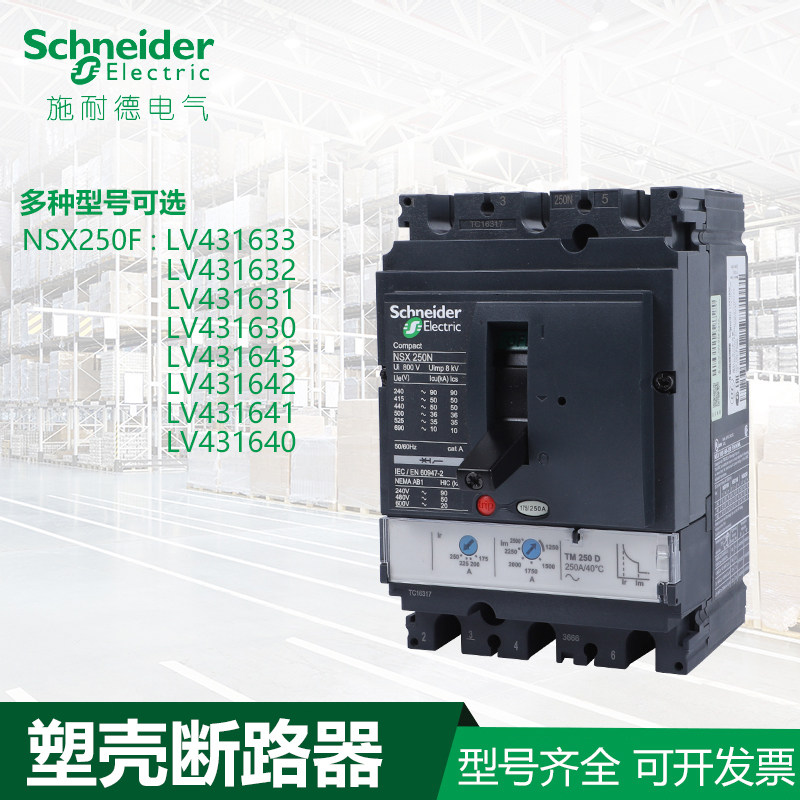

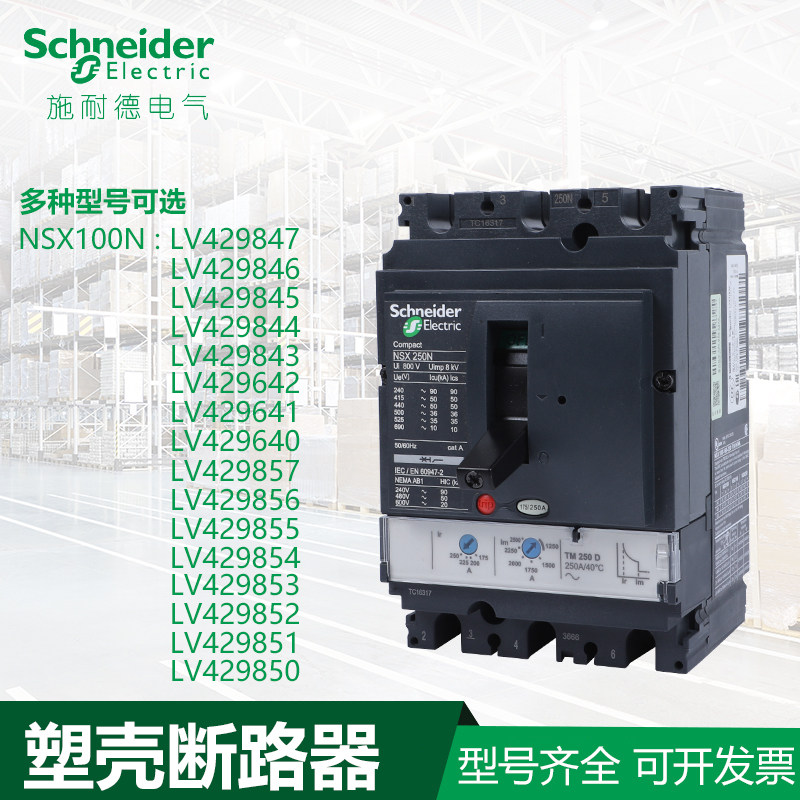

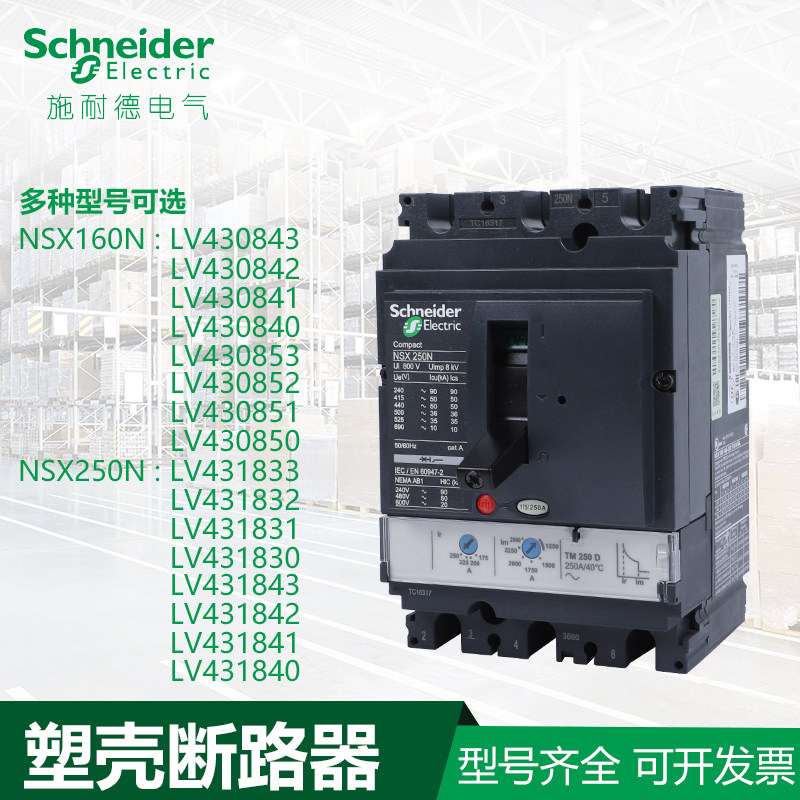

- Verified Part Numbers: Includes LV432682, LV432876, LV432707, LV429847, and others as identified in the technical catalog.
How to Use
- Preparation: Ensure the main power supply is fully de-energized before attempting installation.
- Mounting: Secure the circuit breaker onto the mounting plate or DIN rail within your distribution panel using the appropriate hardware.
- Wiring: Connect the line and load cables to the terminals. Use a calibrated torque wrench to ensure all connections meet the manufacturer’s specified tightness to prevent overheating.
- Configuration: If the model includes an adjustable trip unit, set the thermal and magnetic parameters according to your system's load requirements.

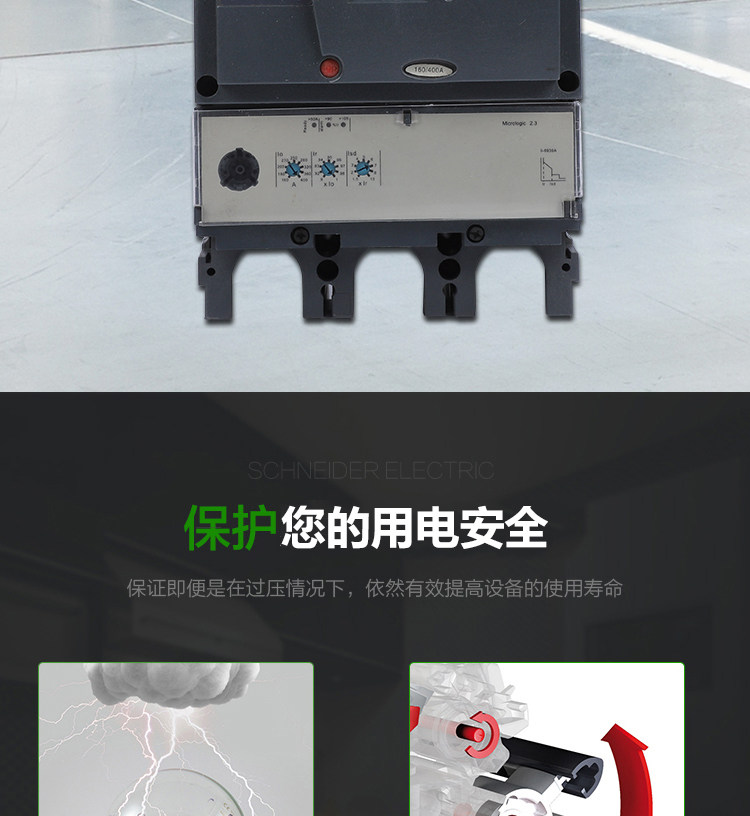

- Testing: Utilize the "Push-to-Trip" button located on the front face of the unit to manually verify the mechanical tripping mechanism before commissioning.
Care & Safety
- Professional Installation: This equipment must be installed, adjusted, and maintained only by qualified electrical personnel.
- Environment: Store and operate in a dry, dust-free environment. Avoid exposure to corrosive gases or excessive moisture which can degrade internal components.
- Maintenance: Periodically inspect terminal connections for signs of heat discoloration or loosening.
- Safety Warning: Never attempt to disassemble the molded casing or modify the internal trip units, as this can lead to catastrophic failure or electrical fire.
Notes
"Multiple models available" to suit various industrial protection requirements.
